ATEX LED Linear Lamp 100W IP66 Emergency Function Mean Well

The ATEX LED Linear Lamp 100W IP66 with emergency function is designed for installation in industrial environments at risk of explosion due to the presence of flammable gases or combustible dust. This unit complies with current ATEX regulations and is suitable for use in zones 1 and 2 (gases) and zones 21 and 22 (dust), offering safe and reliable operation in critical facilities.

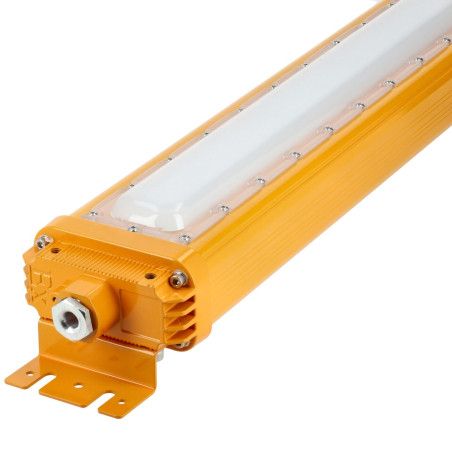

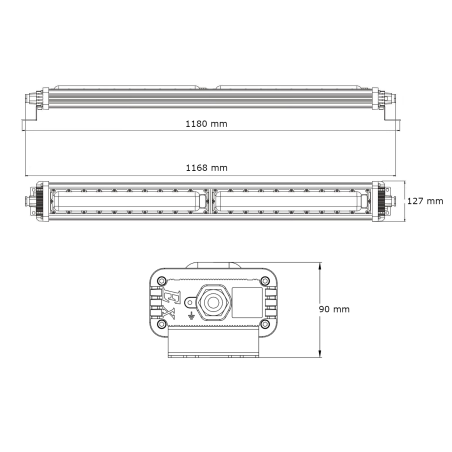

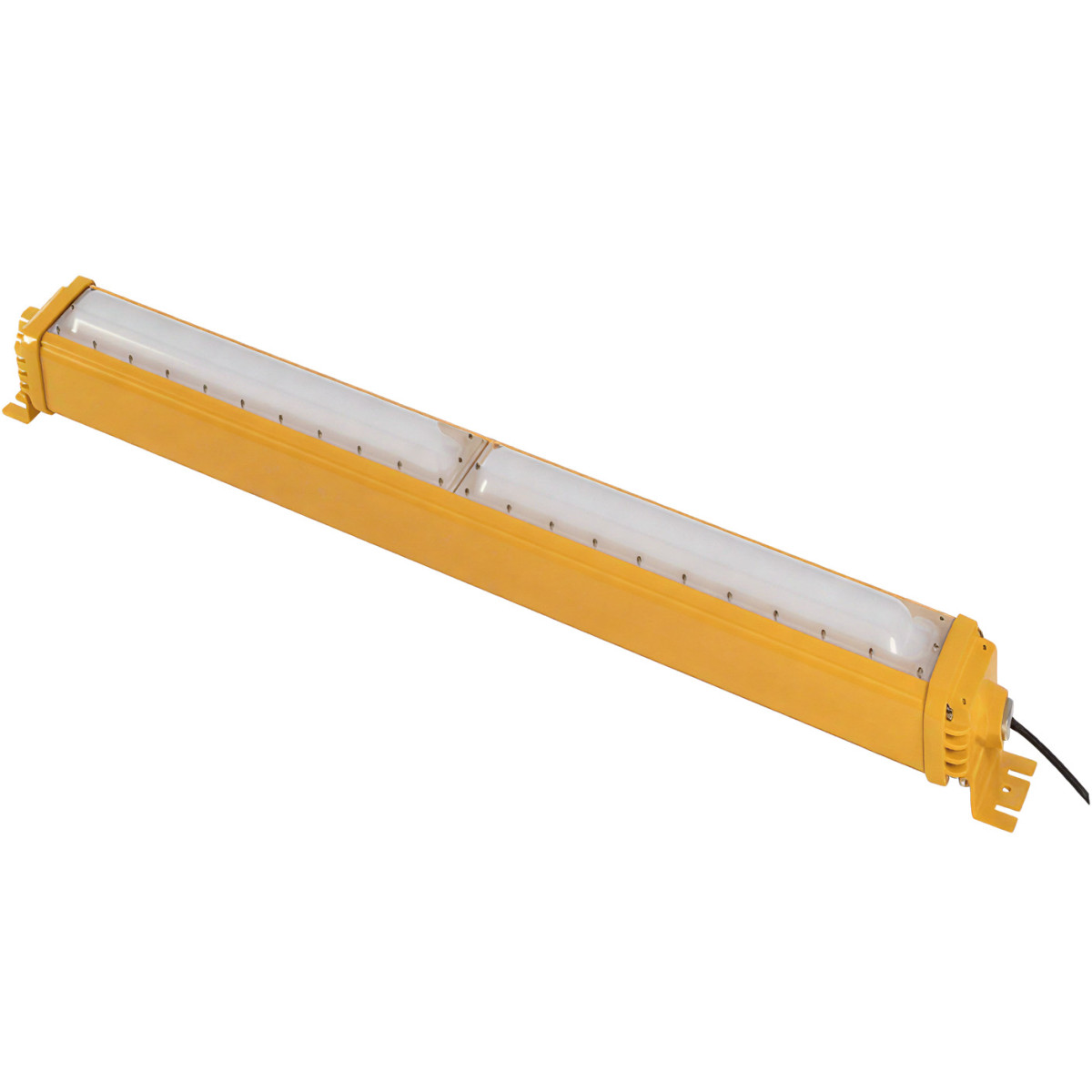

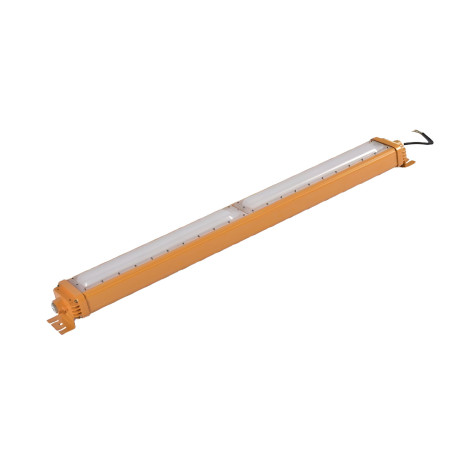

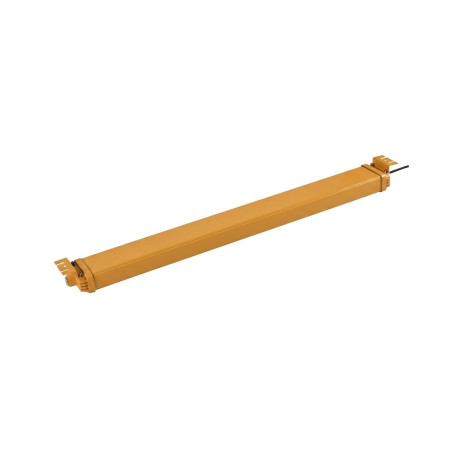

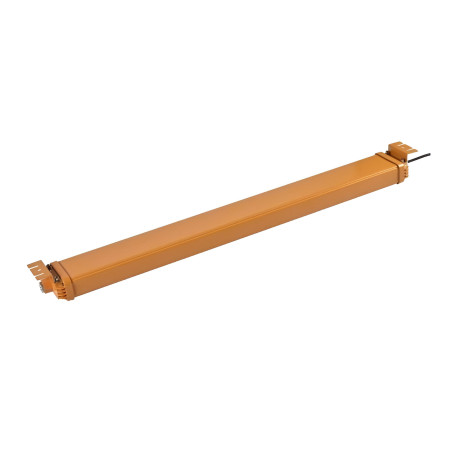

It is a 120 cm long linear luminaire, designed for surface mounting, providing powerful and uniform lighting in ATEX spaces that require high levels of safety and reliability. It incorporates a Lumileds chip and Mean Well driver, ensuring stable performance, high efficiency, and a long service life, backed by a 5-year warranty.

Emergency function and safety

The linear lamp features an internal emergency battery that keeps the luminaire on at 10% of its nominal power in case of power failure, for a maximum time of up to 3 hours. This function is essential to ensure visibility and safe evacuation in emergency situations or power outages.

Luminous performance and efficiency

With a power of 100W and a luminous efficacy of 150 lm/W, this luminaire offers intense and efficient lighting. Its LED technology reduces energy consumption and maintenance costs compared to traditional solutions.

Designed for demanding environments
It has an IP66 protection rating, which ensures high resistance to water and dust, allowing its use both indoors and outdoors, even under adverse weather conditions. Its wide operating temperature range, from -20 °C to +50 °C, makes it suitable for demanding industrial environments. In addition, it has WF2 anti-corrosion treatment, ideal for aggressive environments and industrial or maritime applications.

Installation and certifications

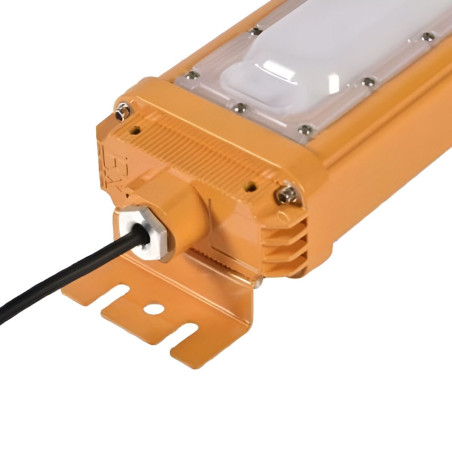

Includes fixed metal brackets for surface installation, facilitating safe and stable mounting. It features the ATEX marking II GD Ex db eb IIC T6 Gb; Ex tb IIIC T(80º) Db, guaranteeing its suitability for areas with potentially explosive atmospheres.

Recommended applications

This ATEX LED linear lamp with emergency function is ideal for installation in:

Factories and industrial buildings

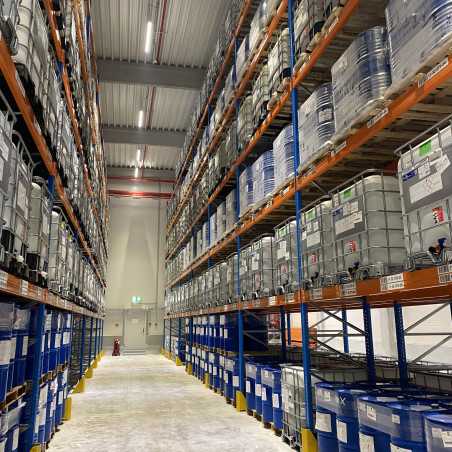

Warehouses and workshops
Spray booths
Gas stations
Vessels and ships
Areas with potentially explosive atmospheres in general

The product is available in other variants. For custom configurations or additional information, contacting customer service is recommended. For more technical details, consult the instruction manual available in the "Manuals and downloads" section.
