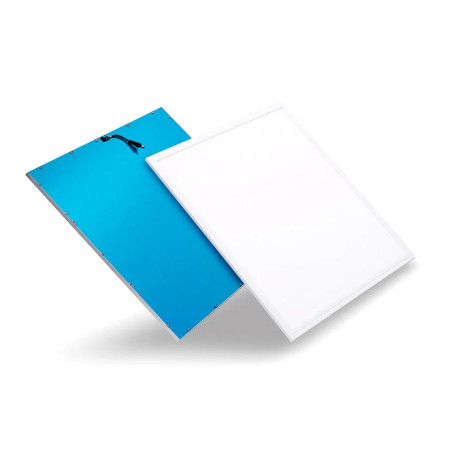

LED Panel - Extra-slim, 40W, 60x60 cm white frame
  • LED Panel - Extra-slim, 40W, 60x60 cm white frame
  • LED Panel - Extra-slim, 40W, 60x60 cm white frame
  • Panel Led 60 x 60 cm 45W extraplano

LED Panel - Extra-slim, 40W, 60x60 cm white frame

PN60X60B40N
€16.66 (20,16€ IVA incluido)
Power40W
Lumen3800 lumen
Beam angle120
VIN85 - 265 V
More technical information+ Info
Color
  •     En Stock
  •     En Stock
Quantity
Professional? Click here!

  • Safe purchase through secured payment gateway Safe purchase through secured payment gateway
  • 24/48h shipping on the peninsula 24/48h shipping on the peninsula
  • Return period 15 days Return period 15 days

Extra-slim 40W, 60 x 60 cm, LED ceiling panel, available in white light and natural white light, with 3800 lumens.

Extra-slim LED panel with 3 mounting options: surface-mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.

Features:

-White panel and white frame model.
-Driver included.

Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.


Accessories:

The default option for this panel is the simplest- mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.

a) installation kit for suspended LED panel:
Installation instructions: ceiling mounted with steel cables and spring mounts.

b) installation kit LED panel plaster ceiling:
Recessed installation on previously cut plaster ceiling.


Delivery within 24-48h. For further information, please check our Delivery Policy.
Satisfaction guaranteed or your money back, please check our Returns Policy.

PN60X60B40N

Data sheet

  • Size595 X 595 X 9 mm
  • Cut575 x 575 mm
  • Power40W
  • Lumen3800
  • Color temperatureCool white 6000K - Natural white 4500K
  • Beam angle120
  • Indoor / outdoorInterior
  • Led type and quantitySMD 4014 160 leds
  • DiffuserOpaque
  • Power factor0.95
  • VIN85 - 265 V
  • Frequency (HZ)50/60 hz
  • Materialaluminum and polycarbonate
  • IP gradeIP20
  • Duration30,000 hours
  • Working temperature-20º / +40º
  • CertificationsCE, RoHS
  • Warranty2 years


Extra-slim 40W, 60 x 60 cm, LED ceiling panel, available in white light and natural white light, with 3800 lumens.

Extra-slim LED panel with 3 mounting options: surface-mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.

Features:

-White panel and white frame model.
-Driver included.

Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.


Accessories:

The default option for this panel is the simplest- mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.

a) installation kit for suspended LED panel:
Installation instructions: ceiling mounted with steel cables and spring mounts.

b) installation kit LED panel plaster ceiling:
Recessed installation on previously cut plaster ceiling.


Delivery within 24-48h. For further information, please check our Delivery Policy.
Satisfaction guaranteed or your money back, please check our Returns Policy.
