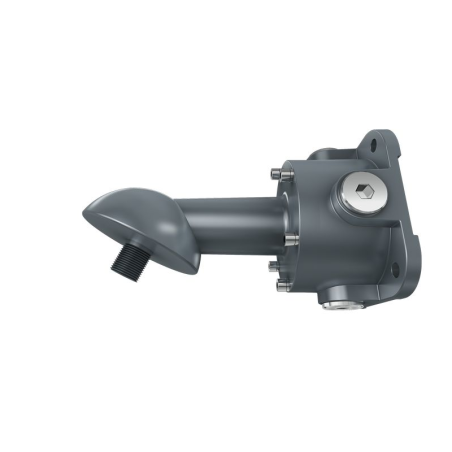

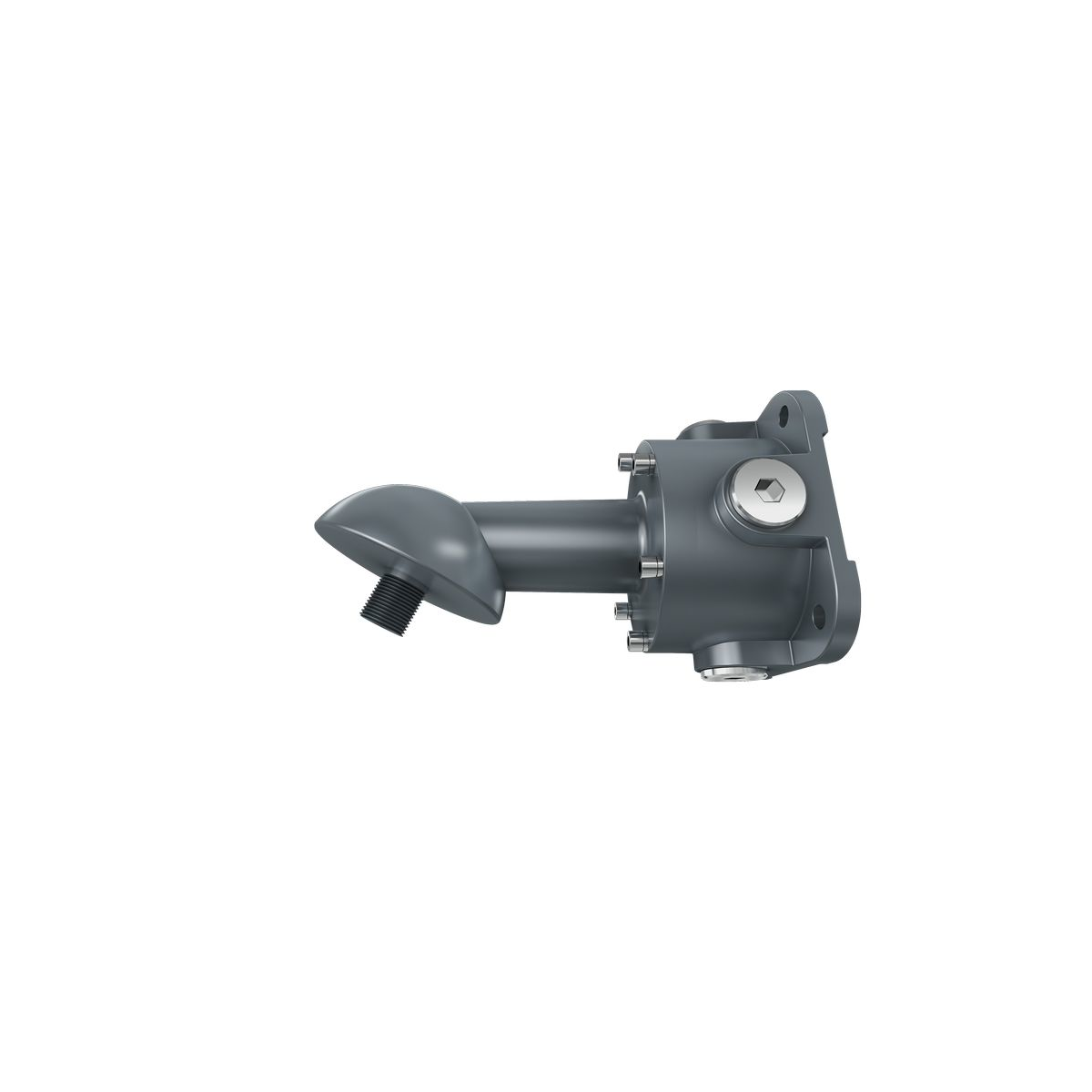

Wall bracket 120º ATEX 3/4’ NPT

SPEX34120
299,95 € Tax included
VINAC 220-240V
Más datos técnicos+ Info
colour
  •   history   Preorder: ~ 14/02/2025
Quantity

  • Safe purchase through secured payment gateway Safe purchase through secured payment gateway
  • 24/48h shipping mainland Spain 24/48h shipping mainland Spain
  • Return period 15 days Return period 15 days
  • Up to 5-year warranty Up to 5-year warranty
  • Product Details

Industrial bracket made of aluminium finished in grey, for surface installation of explosion-proof luminaires.

It has both ATEX and IECEX certification, making it suitable for areas with potentially explosive atmospheres.

Its IP66 degree of protection allows it to be installed in wet areas.

The lower part consists of a junction box with four 3/4’ NPT metric threaded conduits (closed with hexagonal plug). ATEX cable glands must be purchased for the ways to be used.

Ideal luminaire for factories, warehouses, workshops, industrial warehouses, ships, paint booths, petrol stations and areas with potentially explosive atmospheres in general.

Characteristics:

- Compatible with our ATEX floodlights and hoods of any power.

- Painted by electrostatic spraying, with a high degree of anti-corrosion.

- Suitable for zones 1 and 2 (gases) + 21 and 22 (dust).

- Marking II 2 GD Ex db IIB+H2 T6/T5 Gb

                Ex tb IIC T80°C/T95ºC Db

- Tamb: -60°C / +40ºC (T6/T80ºC)

- Hermetically sealed by thread (fixed with A2-70 hexagon head screws).

- Base size : 134 x 134 mm.

- Total arm length: 295 mm.

- Surface fixing screws not included.

SPEX34120

Data sheet

  • VINAC 220-240V
  • Frequency (HZ)50/60 hz
  • Materialaluminum
  • IP gradeIP66
  • CertificationsATEX, RoHS
  • Weight
  • Warranty5 years


Industrial bracket made of aluminium finished in grey, for surface installation of explosion-proof luminaires.

It has both ATEX and IECEX certification, making it suitable for areas with potentially explosive atmospheres.

Its IP66 degree of protection allows it to be installed in wet areas.

The lower part consists of a junction box with four 3/4’ NPT metric threaded conduits (closed with hexagonal plug). ATEX cable glands must be purchased for the ways to be used.

Ideal luminaire for factories, warehouses, workshops, industrial warehouses, ships, paint booths, petrol stations and areas with potentially explosive atmospheres in general.

Characteristics:

- Compatible with our ATEX floodlights and hoods of any power.

- Painted by electrostatic spraying, with a high degree of anti-corrosion.

- Suitable for zones 1 and 2 (gases) + 21 and 22 (dust).

- Marking II 2 GD Ex db IIB+H2 T6/T5 Gb

                Ex tb IIC T80°C/T95ºC Db

- Tamb: -60°C / +40ºC (T6/T80ºC)

- Hermetically sealed by thread (fixed with A2-70 hexagon head screws).

- Base size : 134 x 134 mm.

- Total arm length: 295 mm.

- Surface fixing screws not included.
