  • LED Panel - Extra-slim, 88W, 60X120 cm white frame
  • LED Panel - Extra-slim, 88W, 60X120 cm white frame
  • LED Panel - Extra-slim, 88W, 60X120 cm white frame

LED Panel - Extra-slim, 72W, 60X120 cm white frame

PN60X120B72F
€46.46
Power72W
Lumen7200 lumen
Beam angle120
VIN85 - 265V
Más datos técnicos+ Info
Color temperature
  •     En Stock
  •     En Stock
Quantity
Si eres profesional, pincha aquí

  • Safe purchase through secured payment gateway Safe purchase through secured payment gateway
  • 24/48h shipping mainland Spain 24/48h shipping mainland Spain
  • Return period 15 days Return period 15 days
  • Up to 5-year warranty Up to 5-year warranty
  • Product Details
  • Manuals and downloads

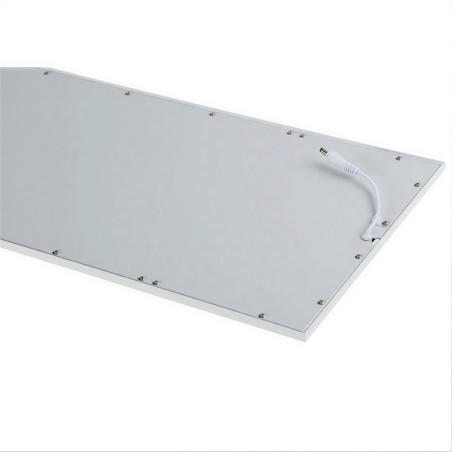

Extra-slim 60x120 cm 72W LED ceiling panel.

Extra-slim LED panel with 3 mounting options: surface-mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.

Features:

White frame model
Driver included.

Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.

Accessories:

The default option for this panel is the simplest- mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.

a) Installation;n installation Kit for suspended LED panel:
Installation instructions: ceiling mounted with steel cables and spring mounts.

b) Installation Installation kit LED panel plaster ceiling:
Recessed installation on previously cut plaster ceiling.
PN60X120B72F
en
https://eprel.ec.europa.eu/api/products/lightsources/2345623/fiches?noRedirect=false&language=EN
https://eprel.ec.europa.eu/api/products/lightsources/2345623/labels?format=PNG
2345623

Clasificación energética

Eficiencia energética normativa 2023. EPREL
Ficha técnica EPREL (PDF)

Data sheet

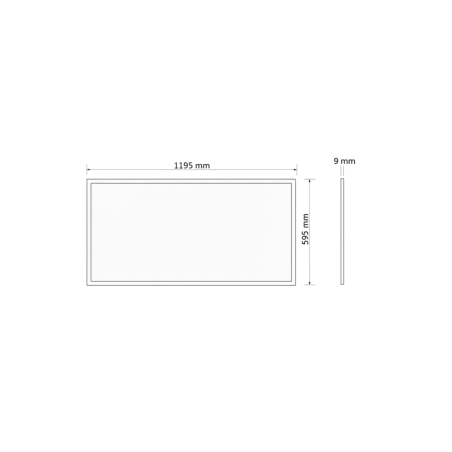

  • Size595 x 1195 mm
  • Cut575 x 1175 mm
  • Power72W
  • Lumen7200
  • Color temperatureCool white 6000K - Natural white 4500K
  • Beam angle120
  • Indoor / outdoorInterior
  • Led type and quantitySMD4014 440 LEDs
  • VIN85 - 265V
  • Frequency (HZ)50/60 hz
  • Materialaluminum and polycarbonate
  • IP gradeIP20
  • Duration30,000 hours
  • Working temperature-20º / +40º
  • CertificationsCE, RoHS
  • Warranty3 years

Other informations

EPREL Registry No.
2345623

Download

download Instalación panel LED

- (584.74k)



Extra-slim 60x120 cm 72W LED ceiling panel.

Extra-slim LED panel with 3 mounting options: surface-mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.

Features:

White frame model
Driver included.

Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.

Accessories:

The default option for this panel is the simplest- mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.

a) Installation;n installation Kit for suspended LED panel:
Installation instructions: ceiling mounted with steel cables and spring mounts.

b) Installation Installation kit LED panel plaster ceiling:
Recessed installation on previously cut plaster ceiling.
