  • LED Panel - Extra-slim, 40W, 30 x 120 cm white frame

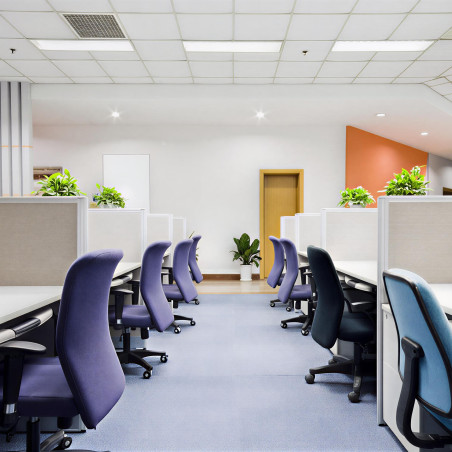

LED Panel - backlit, 40W, 30 x 120 cm white frame

PR30X120B40F
€17.18 Tax included
Power 40W
Lumen 3800
Beam angle 120
VIN 185-265V
Further technical details+ Data
Color temperature
En Stock
Quantity
Save to favourites
  • Safe purchase through secured payment gateway Safe purchase through secured payment gateway
  • 24/48h shipping mainland Spain 24/48h shipping mainland Spain
  • Return period 15 days Return period 15 days
  • Up to 5-year warranty Up to 5-year warranty

Clasificación energética

Eficiencia energética normativa 2023

Downloads

download Instalación panel LED

- (584.74k)

Datasheet

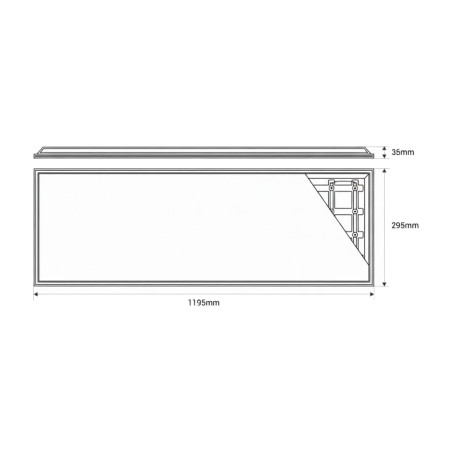

  • Size295 x 1195 x 35mm
  • Cut275 x 1175 mm
  • Power40W
  • Lumen3800
  • Color temperatureWhite 6000K - Warm white 4000K
  • Beam angle120
  • VIN185-265V
  • Frequency (HZ)50 Hz
  • Materialaluminum and polycarbonate
  • DimmableNo
  • IP gradeIP20
  • Duration30,000 hours
  • Working temperature-20º / +40º
  • CertificationsCE, RoHS
  • Warranty3 years

Product details

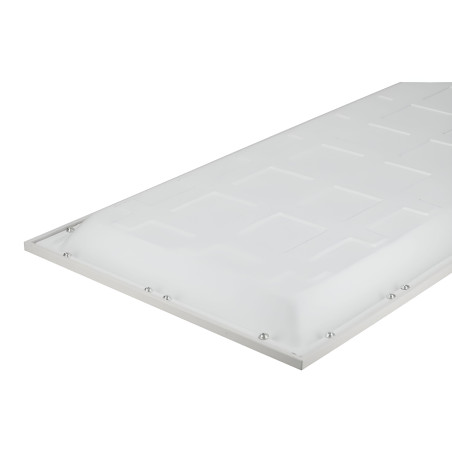

Backlit 40W, 30 x 120 cm, LED ceiling panel.

LED panel with 3 mounting options: surface mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.

Features:

White frame model.
Driver included.

Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.

Accessories:

The default option for this panel is the simplest - mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.

a) Installation;n installation kit for suspended LED panel:
Installation instructions: ceiling mounted with steel cables and spring mounts.

b) Installation installation kit LED panel plaster ceiling:
Recessed installation on previously cut plaster ceiling.
