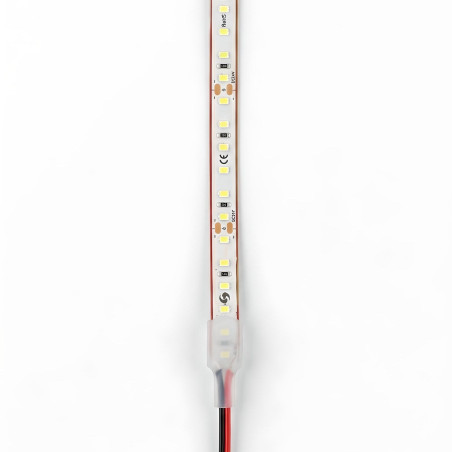

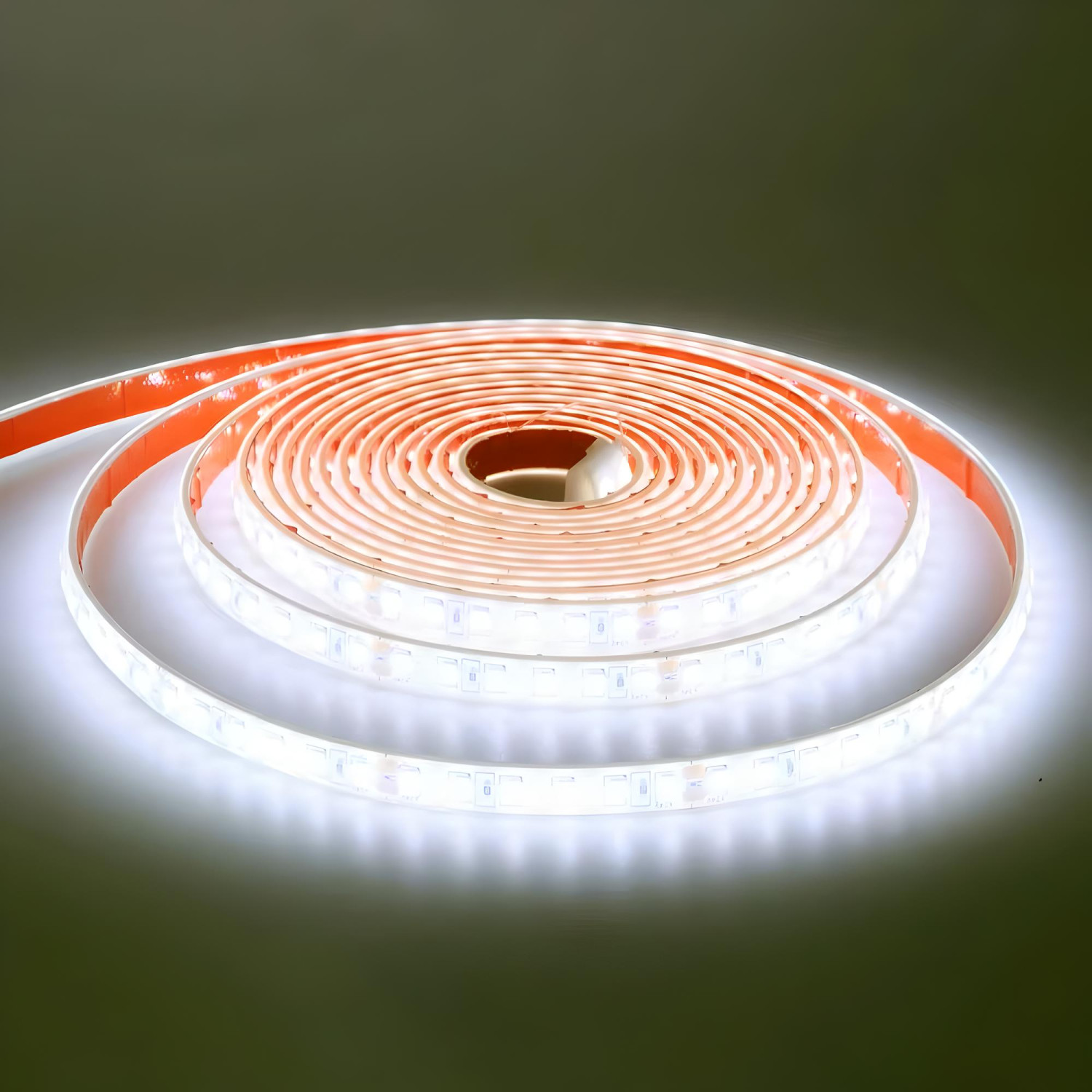

LED Strip 24V SMD 4W/m 8000lm 10mm Width IP67 - Roll 20 meters

The LED Strip SMD 24V IP67 is designed to create continuous lines of illumination in installations that require good protection against water and moisture. It is supplied in a reel of 20 meters, with a width of 10 mm, and operates at 24V DC, facilitating the installation of long lighting runs.

Its total power consumption is 80W per reel, with a luminous flux of 8000 lumens. It is available in warm light 3000K and cool light 6000K, allowing the illumination to be adapted to different environments and projects.

LED Strip 24V IP67 for outdoor use

Its protection rating IP67 makes it suitable for outdoor installations and spaces exposed to moisture, splashes, or occasional contact with water.

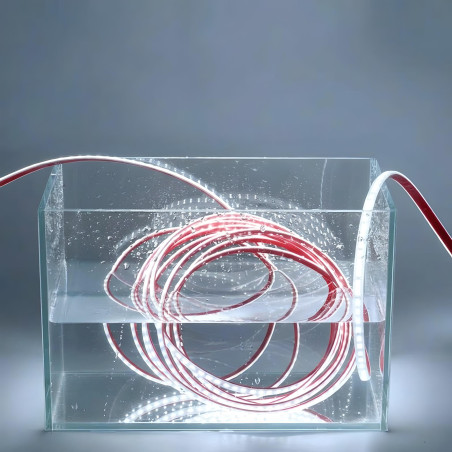

One of its main features is that it can be temporarily submerged up to 1 meter in depth for a maximum of 30 minutes. It is important to differentiate this feature from a permanently submerged installation: the IP67 protection is designed to withstand temporary immersion, not continuous submersion under water.

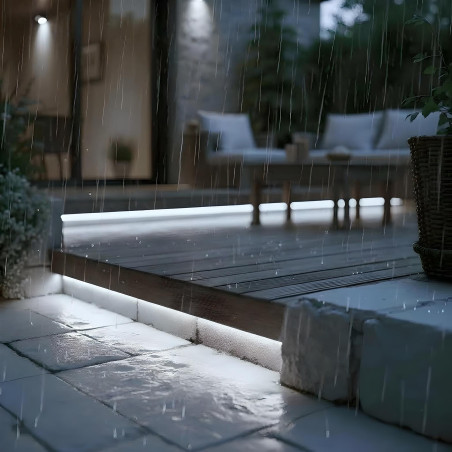

It is suitable for applications such as:

• Pool surrounds and edges.
• Terraces and outdoor areas.
• Outdoor commercial spaces.
• Decorative elements exposed to moisture.
• Continuous lines of illumination.
• Outdoor lighting projects.

Uniform illumination with SMD technology

Equipped with 120 LED per meter and SMD technology, this strip provides uniform illumination with a opening angle of 120°. Its 20-meter format allows for long installations reducing the number of connections between sections. Due to its construction characteristics, it is not recommended to install it inside aluminum profiles.

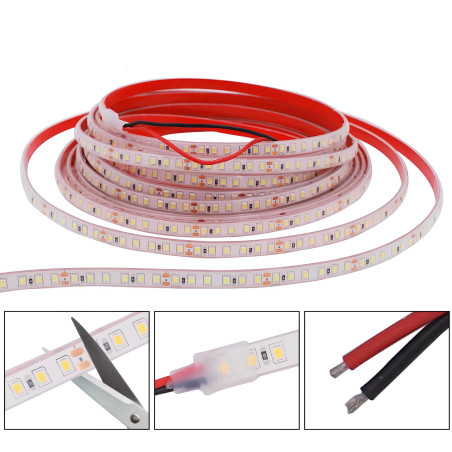

The strip can be cut every 5 cm at the marked areas, allowing the length to be adapted to the needs of each project. Additionally, it is adjustable, so it can be used with compatible dimmers or controllers.

A solution for long lighting runs

The 20-meter format and 24V power supply facilitate the creation of continuous lighting lines with fewer intermediate connections than installations made with shorter sections. To ensure proper operation, it is essential to follow the manufacturer's power supply and installation instructions and use a correctly sized power supply.

The LED strip offers a service life exceeding 30,000 hours, comes with 3 years warranty and has CE certification.

Before installation, consult the manual available in the “Manuals and downloads” section to know the specific mounting and power supply recommendations.
