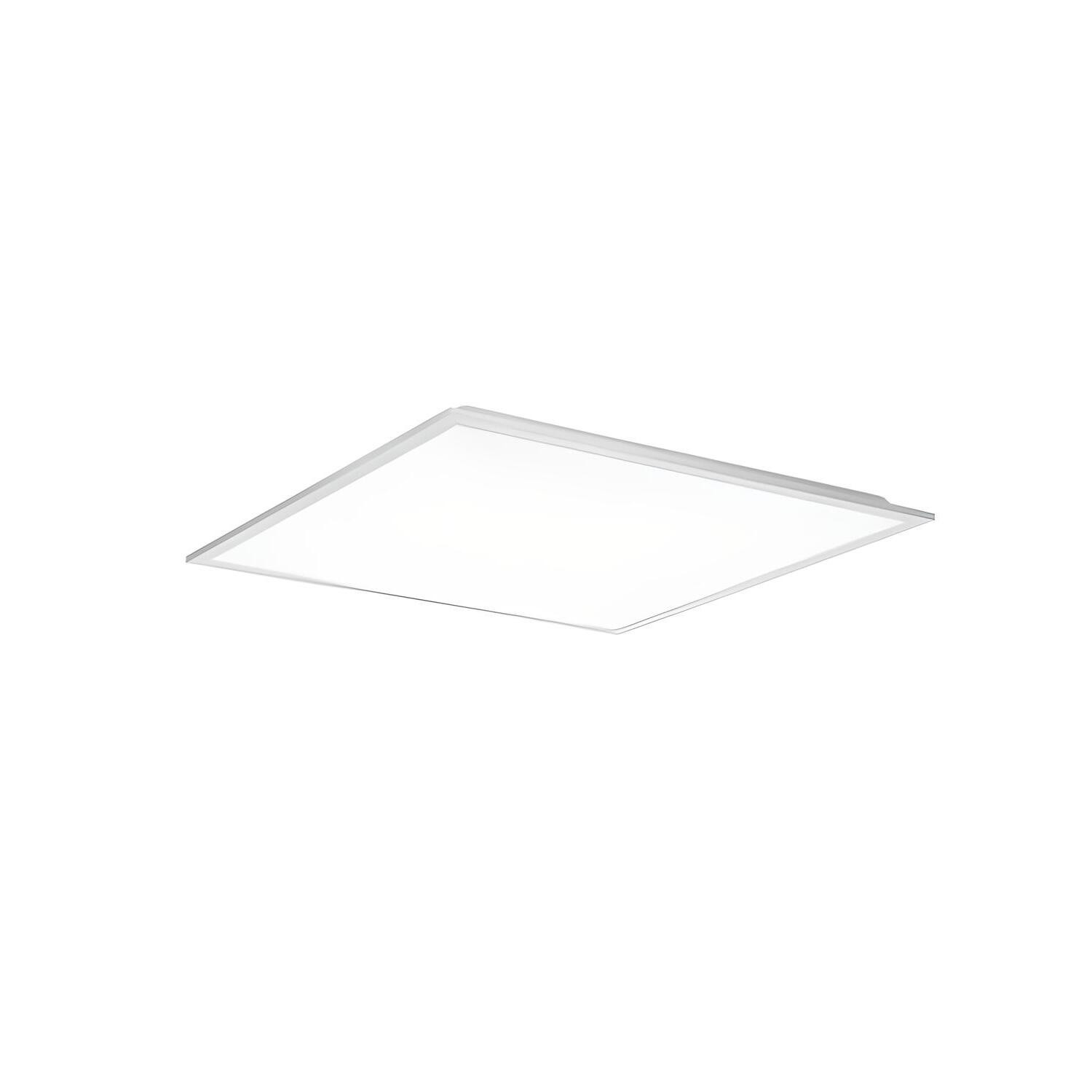

LED Panel 68W Backlit 60x60 IP20

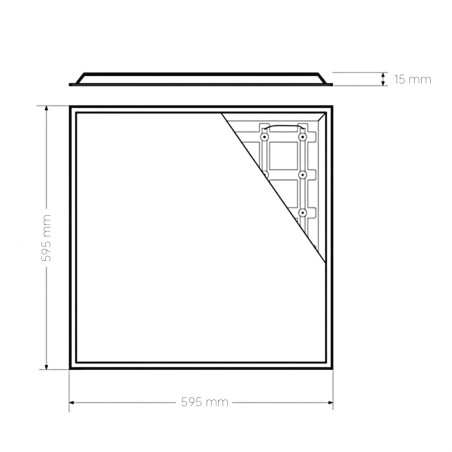

The Retroilluminated LED Panel 68W 60x60 is a high-power lighting solution designed for installation in technical ceilings and false ceilings. Its robust structure, format of 595 x 595 x 15 mm and uniform light distribution make it an efficient alternative to replace conventional lighting panels.

Uniform and efficient lighting for all types of spaces

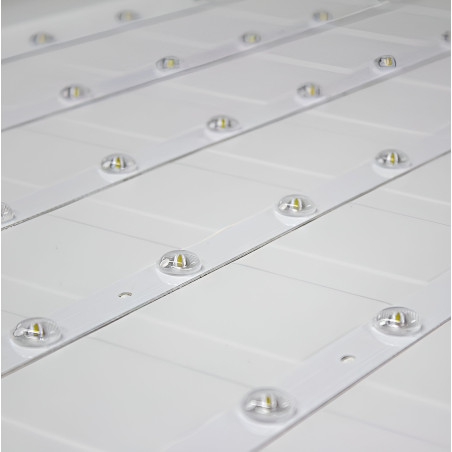

This 68W LED panel incorporates LEDs distributed across its entire surface, achieving a more uniform and smooth lighting than that offered by conventional extra-flat panels. Its 120° beam angle allows for wide light distribution, reducing shadow areas and providing homogeneous general lighting.

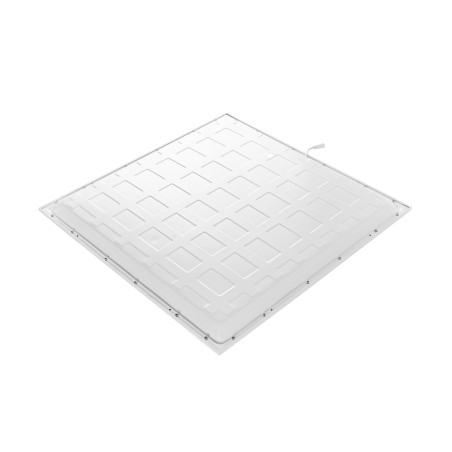

With a thickness of only 15 mm, this model retains the advantages of a retroilluminated panel but with a particularly thin format, making it suitable for false ceilings with limited space available. Its design in aluminum and polycarbonate provides a durable structure prepared for continuous use.

It is available in two color temperatures: neutral light 4000 K and white light 6000 K, allowing the choice of the most suitable lighting tone according to the needs of each installation.

Four installation options

The panel is supplied prepared for installation placed on technical ceiling, although it can also be installed using different mounting systems. For this, it is necessary to purchase the corresponding accessory separately:

• Installation on technical ceiling: the panel is placed directly on the structure of the removable ceiling.

• Surface installation: using a frame that is fixed to the ceiling beforehand.

• Embedded installation in plasterboard: using a clip kit that allows the panel to be fitted into the false ceiling.

• Suspended installation: using a steel cable kit and fixing parts to hang the panel from the ceiling.

This versatility allows the panel to be adapted to different types of spaces and lighting projects, both in new installations and in replacing existing luminaires.

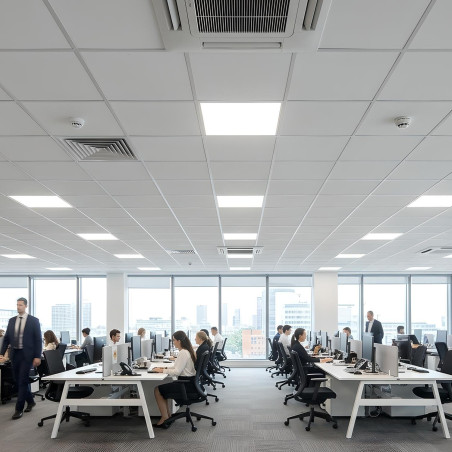

An efficient alternative for residential and professional lighting

Due to its characteristics, the Retroilluminated LED Panel 68W 60x60 is suitable for both residential spaces and commercial and professional installations:

• Offices and offices

• Shops and supermarkets

• Hoteles

• Bars and restaurants

• Corridors and entrance areas

• Living rooms, bedrooms, bathrooms and kitchens

• Commercial and work spaces

Its design allows replacing the old panels installed in removable ceilings, offering higher power lighting and a more uniform distribution.

The panel operates with an input voltage of 180-265 V AC and a frequency of 50 Hz. It includes driver for its operation and has a protection rating of IP20, so it is designed for installation in indoor spaces protected from moisture.

Durability and warranty

The Retroilluminated LED Panel 68W 60x60 offers a service life exceeding 30.000 hours and comes with a 3-year warranty. It has a CE certificate, which certifies the product's compliance with applicable European Union requirements.
