Backlit LED Panel 60x60 40W IP65
  • Backlit LED Panel 60x60 40W IP65
  • back Backlit LED Panel 60x60
  • Backlit LED Panel 60x60  for humid areas
  • Backlit LED Panel 60x60 for bathrooms
  • Backlit LED Panel 60x60 40W
  • LED Driver for Backlit LED Panel 60x60 40W
  • Backlit LED Panel 60x60

Backlit LED Panel 60x60 40W IP65

PR60X60B4065F
€23.95 Tax included
Power 40W
Lumen 4000
Beam angle 120
VIN 85 - 265V
Further technical details+ Data
Quantity
Save to favourites
  • Safe purchase through secured payment gateway Safe purchase through secured payment gateway
  • 24/48h shipping mainland Spain 24/48h shipping mainland Spain
  • Return period 15 days Return period 15 days
  • Up to 5-year warranty Up to 5-year warranty

Clasificación energética

Eficiencia energética normativa 2023. EPREL

Downloads

Datasheet

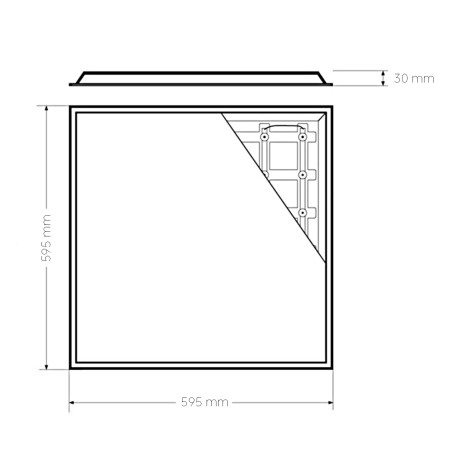

  • Size595 x 595 x 30 mm
  • Power40W
  • Lumen4000
  • Color temperatureCool white 6000k
  • Beam angle120
  • Led typeSMD
  • VIN85 - 265V
  • Frequency (HZ)50/60 hz
  • Materialaluminum and polycarbonate
  • DimmableNo
  • IP gradeIP65
  • Duration30,000 hours
  • CertificationsCE, RoHS
  • Warranty3 years

Product details

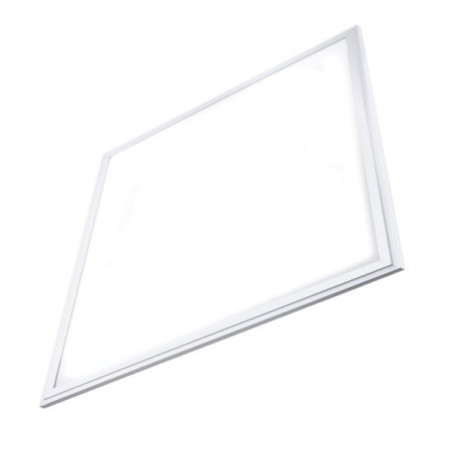

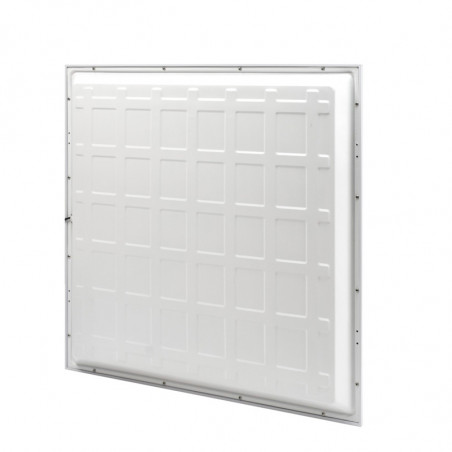

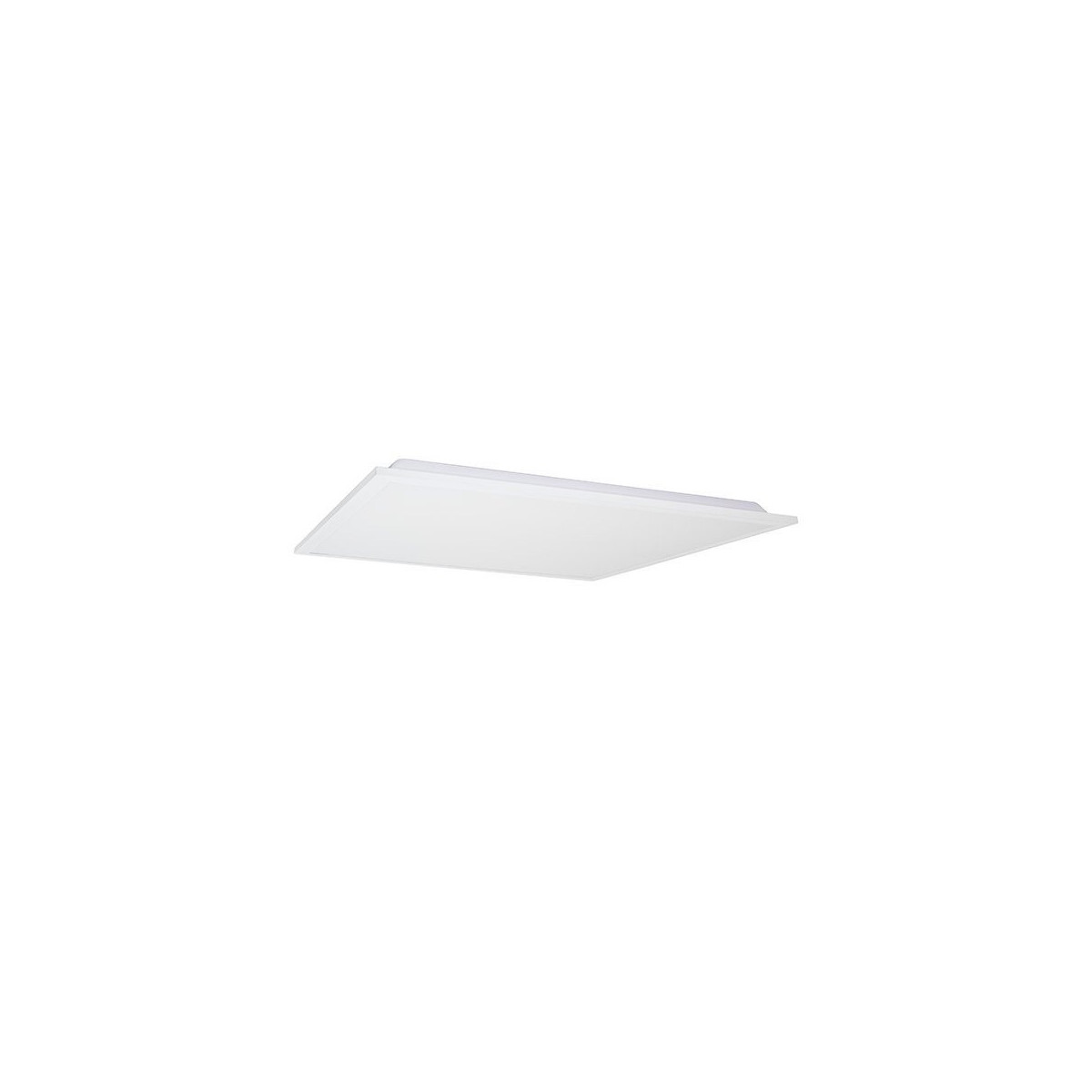

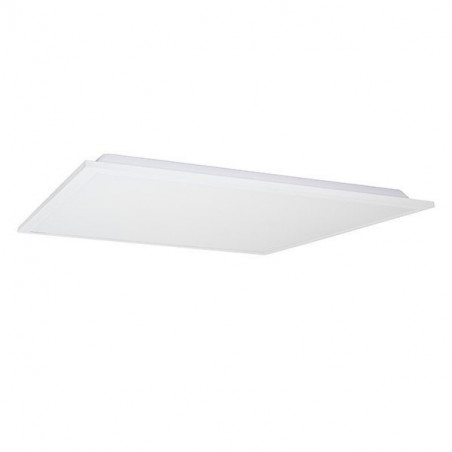

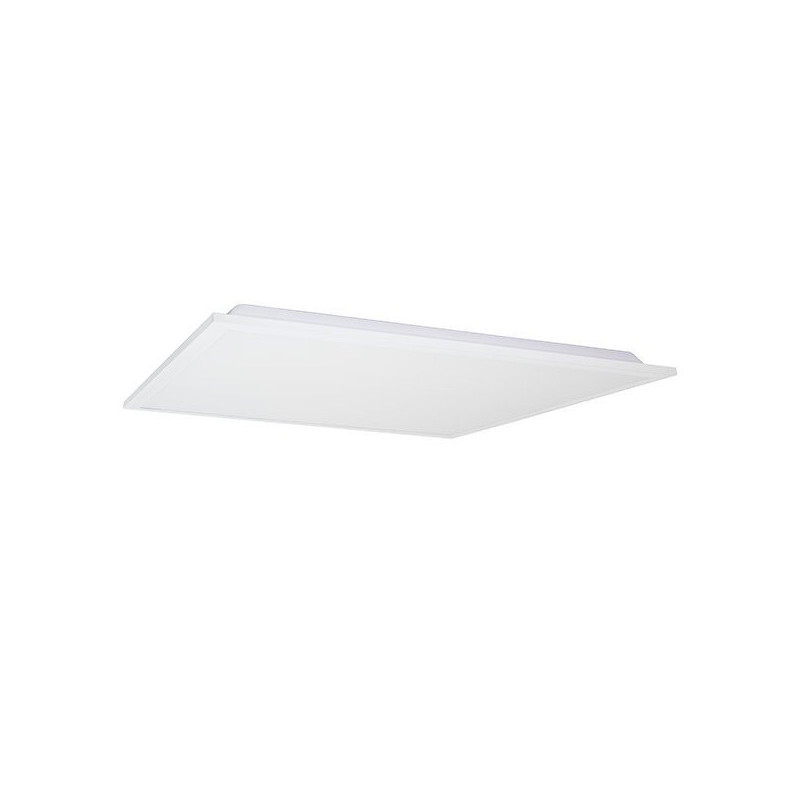

The 60x60 40W IP65 LED Panel is a lighting solution designed to offer high light output and resistance in a single product. It is specifically suitable for humid areas and demanding environments where effective protection against dust and moisture is required.

Furthermore, thanks to its backlight technology, it provides uniform light distribution without dark spots, improving visual comfort compared to conventional ultra-slim panels.

Backlit design and waterproof construction

Its robust structure features SMD LEDs distributed across the entire surface of the panel, enhancing light uniformity and overall durability. The interior of the panel is completely sealed, preventing the ingress of water and dust.

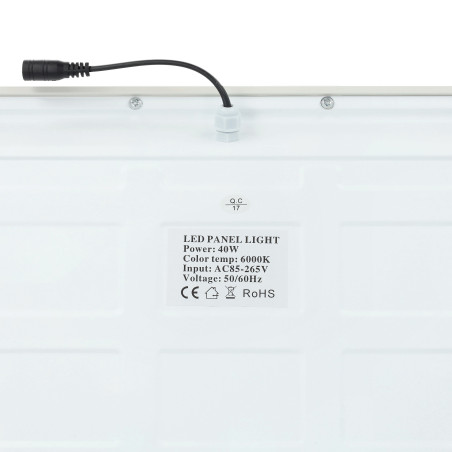

The cable outlet is secured by a waterproof cable gland, and the driver also features IP65 protection, making it ideal for installations in damp locations. The connection between the driver and the panel is IP20; if necessary, it can be further protected using heat-shrink tubing or a waterproof connector.

High luminous performance with reduced consumption

With a consumption of only 40W and a luminous flux of 4,000 lumens, this panel easily replaces old fluorescent fixtures, allowing you to save up to 60% on your electricity bill.

With a 120° beam angle and efficient, soft lighting, this LED panel is suitable for both residential use—bathrooms, kitchens, hallways, entrances, living rooms, bedrooms—and larger spaces such as offices, shops, hotels, bars, restaurants, or supermarkets.

Available in cool white color temperature (6000 K).

Technical characteristics and warranty

It operates with a wide input voltage range (85–265V) and 50/60 Hz frequency, facilitating its integration into various electrical installations. It is made of aluminum and PVC and measures 595 x 595 x 30 mm, compatible with standard technical ceilings.

With a lifespan exceeding 30,000 hours, this LED panel comes with a 3-year warranty and CE certification.

Installation options for the 60x60 LED panel

This backlit LED panel supports four installation systems:

– Recessed in technical ceiling

– Surface installation using a frame

– Suspended installation with steel cables

– Integration into plaster ceilings using clips

The product is supplied as standard for technical ceiling installation. For other options, specific accessories must be purchased.
