UFO LED High Bay Multi-Wattage 200lm/W
  • UFO LED High Bay Multi-Wattage 200lm/W
  • UFO LED High Bay Multi-Wattage 200lm/W
  • UFO LED High Bay Multi-Wattage 200lm/W industrial
  • UFO LED High Bay Multi-Wattage 200lm/W
  • medidas

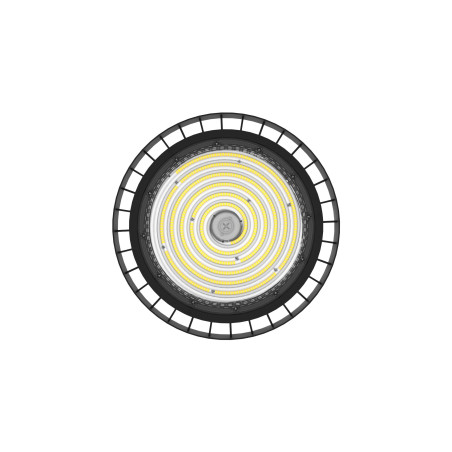

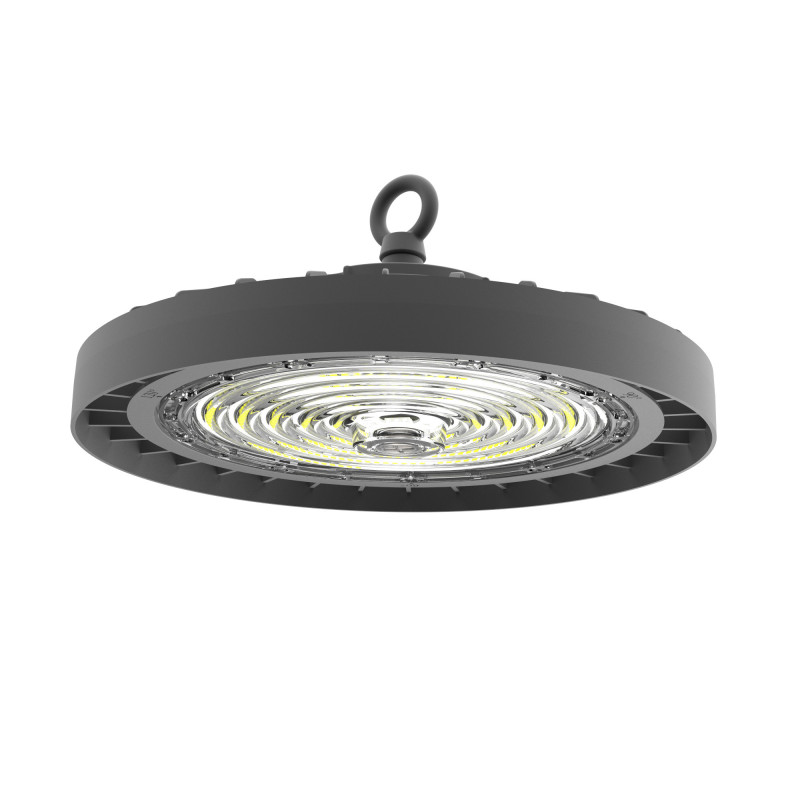

UFO LED High Bay Multi-Wattage 200lm/W Adjustable Optics IP65 3CCT Lifud Driver

CI13150F
€83.49 Tax included
Lumen 200lm/w
VIN 200 - 240 VAC
Dimmable 1-10V
IP grade IP65
Further technical details+ Data
Quantity
Save to favourites
  • Safe purchase through secured payment gateway Safe purchase through secured payment gateway
  • 24/48h shipping mainland Spain 24/48h shipping mainland Spain
  • Return period 15 days Return period 15 days
  • Up to 5-year warranty Up to 5-year warranty

Clasificación energética

Eficiencia energética normativa 2023. EPREL
Ficha técnica EPREL (PDF)

Downloads

download Manual CI13150F

Manual de instrucciones - (1.05M)

Measures

Measures

Datasheet

  • Size
  • Lumen200lm/w
  • Color temperatureCCT
  • Power factor0.95
  • Led typeSamsung
  • VIN200 - 240 VAC
  • Frequency (HZ)50 Hz
  • Materialaluminum
  • Dimmable1-10V
  • IP gradeIP65
  • Duration50,000 hours
  • Working temperature -25~45ºC
  • CertificationsCE, RoHS
  • Warranty5 years
  • DriverLifud

Product details

The Multi-Wattage UFO LED High Bay 200lm/W redefines efficiency in industrial lighting. Thanks to its extreme performance, it delivers the same brightness as conventional high bays while consuming 50% less energy. It is the ultimate professional solution for industrial units, warehouses, and supermarkets seeking to reduce costs without sacrificing visibility.

This model stands out for its triple versatility: multi-wattage (90W/120W/150W), 3CCT (selectable light tone), and adjustable optics, allowing a single product to adapt to any height or project requirement.

Versatility 3-in-1: Power, Color, and Selectable Angle

Unlike standard high bays, this UFO model offers full control over the installation without changing the fixture:

  • Power Selector: Adjust consumption and output between 90W, 120W, and 150W based on mounting height.
  • 3CCT System: Choose the ideal color temperature between 3000K (Warm), 4000K (Neutral), or 6500K (Cool) via an integrated switch.
  • Rotating Optics: Change the beam angle (60º, 90º, or 120º) simply by rotating the lens. Ideal for narrow aisles or wide open areas.

Premium Components for Heavy-Duty Use with LIFUD Driver

The reliability of this LED high bay is based on its high-quality internal components. The 1-10V dimmable Lifud Driver ensures stable current, protecting the LED chips and extending their lifespan to 50,000 hours. Its high-density aluminum body prevents thermal stress, working efficiently from -25°C to +45°C.

Technical Specifications and Energy Performance

  • Luminous Efficiency: 200 lumens per watt (lm/W).

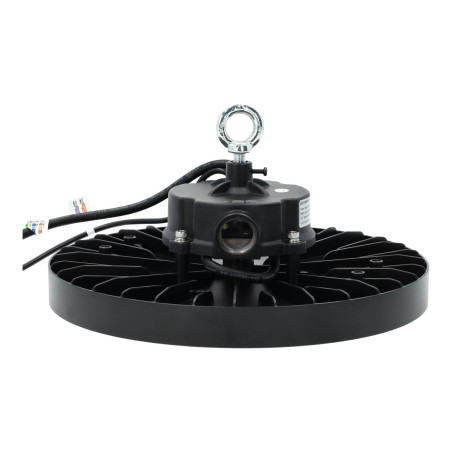

  • Protection: IP65 rating (water and dust resistant) and suspended installation via reinforced eyehook.
  • Light Quality: Power factor >0.95, avoiding reactive energy penalties and ensuring flicker-free light.

Professional Applications of the 200lm/W UFO High Bay

  • Industrial Units and Factories: Efficient production line lighting with maximum clarity.
  • Logistics Warehouses: Ideal for narrow aisles (60º) or open areas (120º).
  • Workshops and Work Centers: Cool light (6500K) for precision tasks and high visibility.
  • Supermarkets and Retail: Neutral tone (4000K) to enhance products in large areas.
  • Parking Lots and Sports Centers: IP65 resistance for humid environments or high ceilings.
