3YEARS WARRANTY

Glass series PIR motion sensor

SPSCB
€5.75 Tax included
VIN AC 220-240V
IP grade IP20
Indoor / outdoor Interior
Further technical details+ Data
Colour
Quantity
Save to favourites
  • Safe purchase through secured payment gateway Safe purchase through secured payment gateway
  • 24/48h shipping mainland Spain 24/48h shipping mainland Spain
  • Return period 15 days Return period 15 days
  • Up to 5-year warranty Up to 5-year warranty

Downloads

Datasheet

  • Size50 x 50 x 30 mm
  • Indoor / outdoorInterior
  • VINAC 220-240V
  • Frequency (HZ)50 Hz
  • MaterialPC
  • IP gradeIP20
  • CertificationsCE, RoHS
  • Warranty3 years
  • Motion sensorPIR

Product details

Device for automating the switching on of a 220V LED installation with a maximum load of up to 60W. This mechanism is activated on detecting movement in the dark and switches off after 50 seconds without detecting any presence. The detection distance is 4-8 metres, with a 90 degree angle. When there is natural light the detector remains inactive.

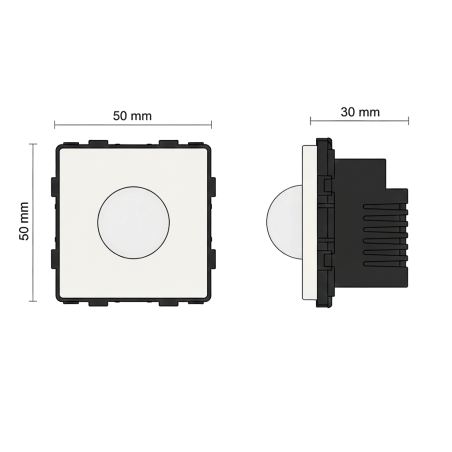

It is designed in PC with the dimensions of 50 x 50 x 30 mm. It allows an input voltage of 220-240V and an operating frequency of 50 Hz.

Due to its IP20 degree of protection it is ideal for indoor installation (protection against solid particles larger than 12mm and it is not waterproof).

It is guaranteed for 3 years. It also has the CE certificate, which certifies that it complies with EU requirements regarding electromagnetic compatibility and low voltage regulations. This certificate declares the conformity of the product with all the legal requirements and ensures the validity of the product to be sold throughout the European Economic Area.

Includes screws for installation.
