Ref. BLSCB
LED Baliza 1W - Serie Pro
€3.87
Tax included
Power
1W
Lumen
120
VIN
100-240V
IP grade
IP20
You may also like
Documents
Datasheet
Size
50 x 50 x 30 mm
Power
1W
Lumen
120
Color temperature
3000k
EAN/GTIN
8435841800946
Description

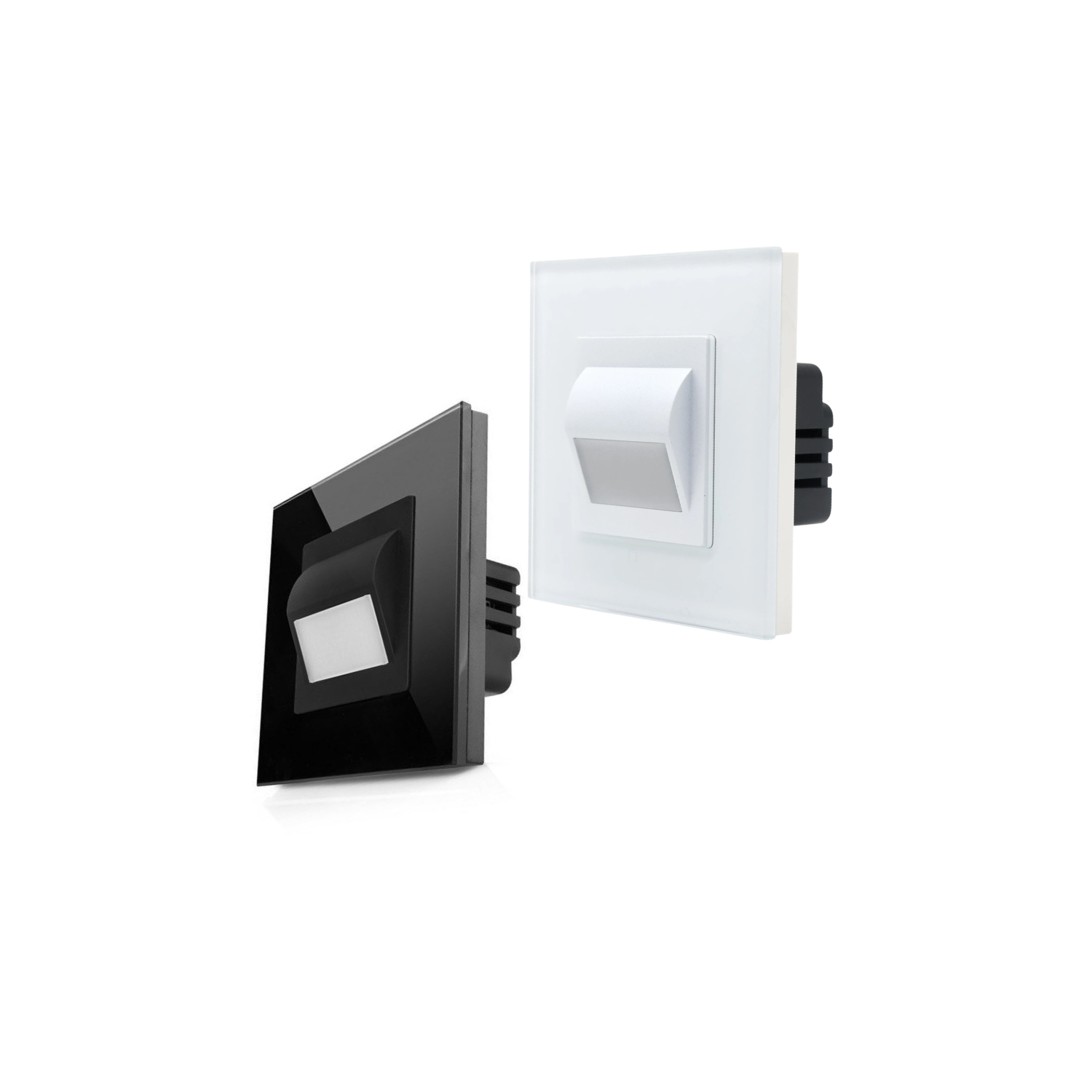

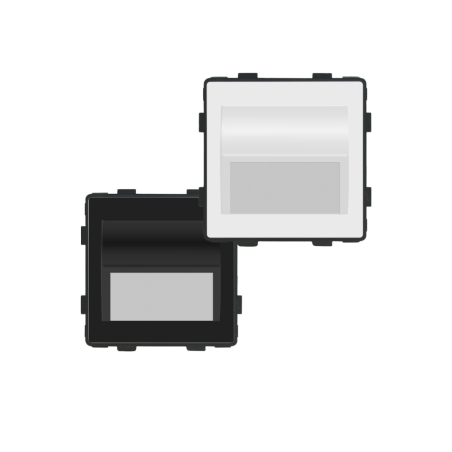

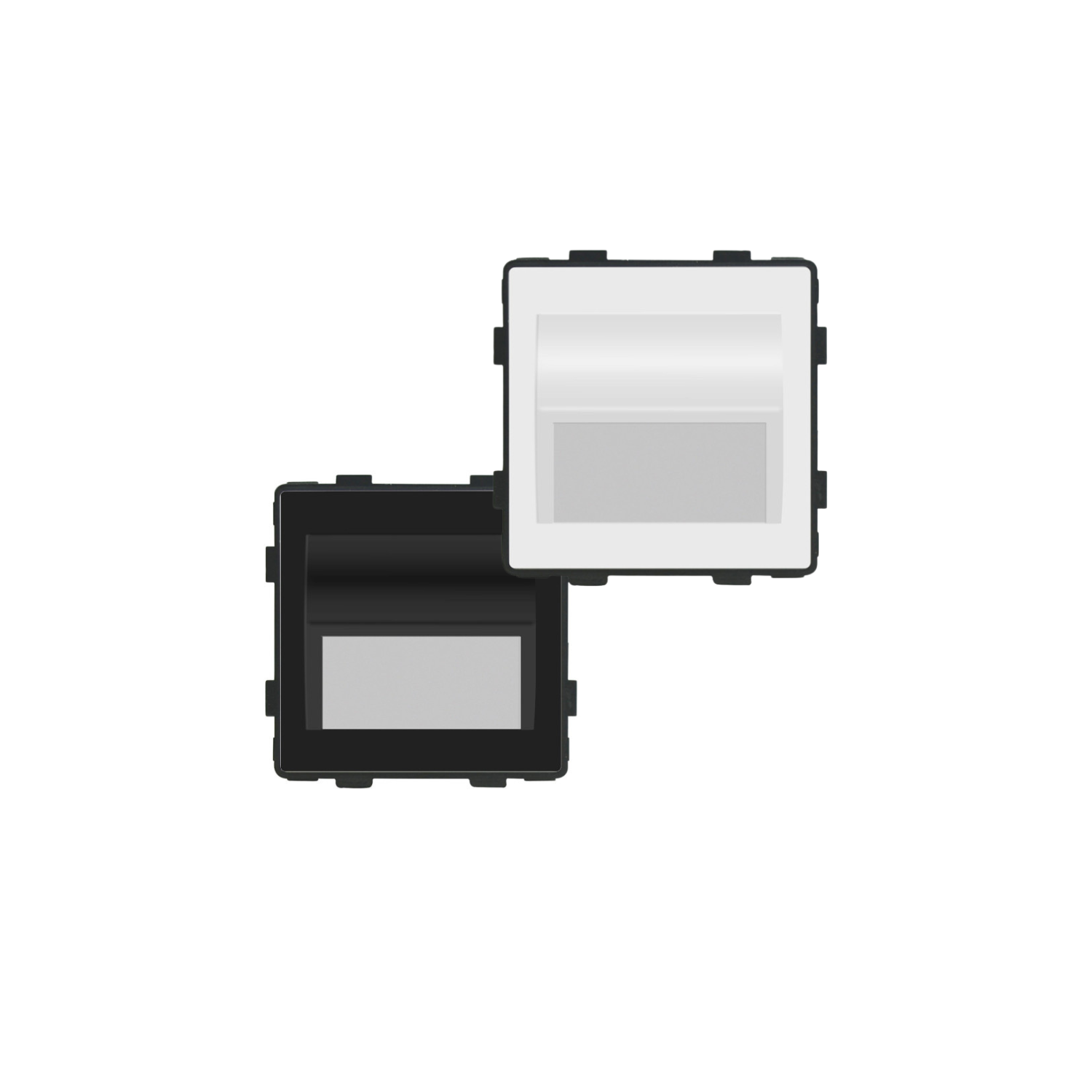

The LED Baliza 1W - Pro Series is an auxiliary lighting mechanism designed to integrate discreetly into interior installations. Its compact format allows it to be used as a signaling or support light in stairs, corridors, walkways, and passage areas, as well as in homes, hotels, bars, restaurants, cinemas, and other indoor spaces.
With a power of 1W and a luminous flux of 120 lumens, it provides auxiliary lighting in warm light of 3000-3500K, creating a pleasant and functional light for areas requiring guidance or auxiliary illumination.
Its essential component: the motion sensor
One of the key elements of this mechanism is its operation via sensor. For the baliza to function controlled, it is essential to also install the PIR Motion Sensor + Twilight Sensor compatible with the Pro Series. The sensor allows managing the baliza's activation; if the baliza is installed without the sensor, it will remain permanently on.
Compatibility and Warranty
The baliza is designed for installation in universal mechanism boxes and must be combined with the frames of the Pro Series, allowing maintaining a uniform aesthetic with the rest of the mechanisms in the range.
It is manufactured in polycarbonate and has dimensions of 50 x 50 x 30 mm. It operates with an input voltage of 100-240V and a frequency of 50/60 Hz.
Its protection rating IP20 makes it suitable for dry indoor installations, as it provides protection against solid objects larger than 12 mm, but not against water.
It comes with 3 years of warranty and is certified CE, in accordance with applicable requirements of the European Union
Includes screws for installation. Does not include frame or sensor.
