Ref. SPSCB

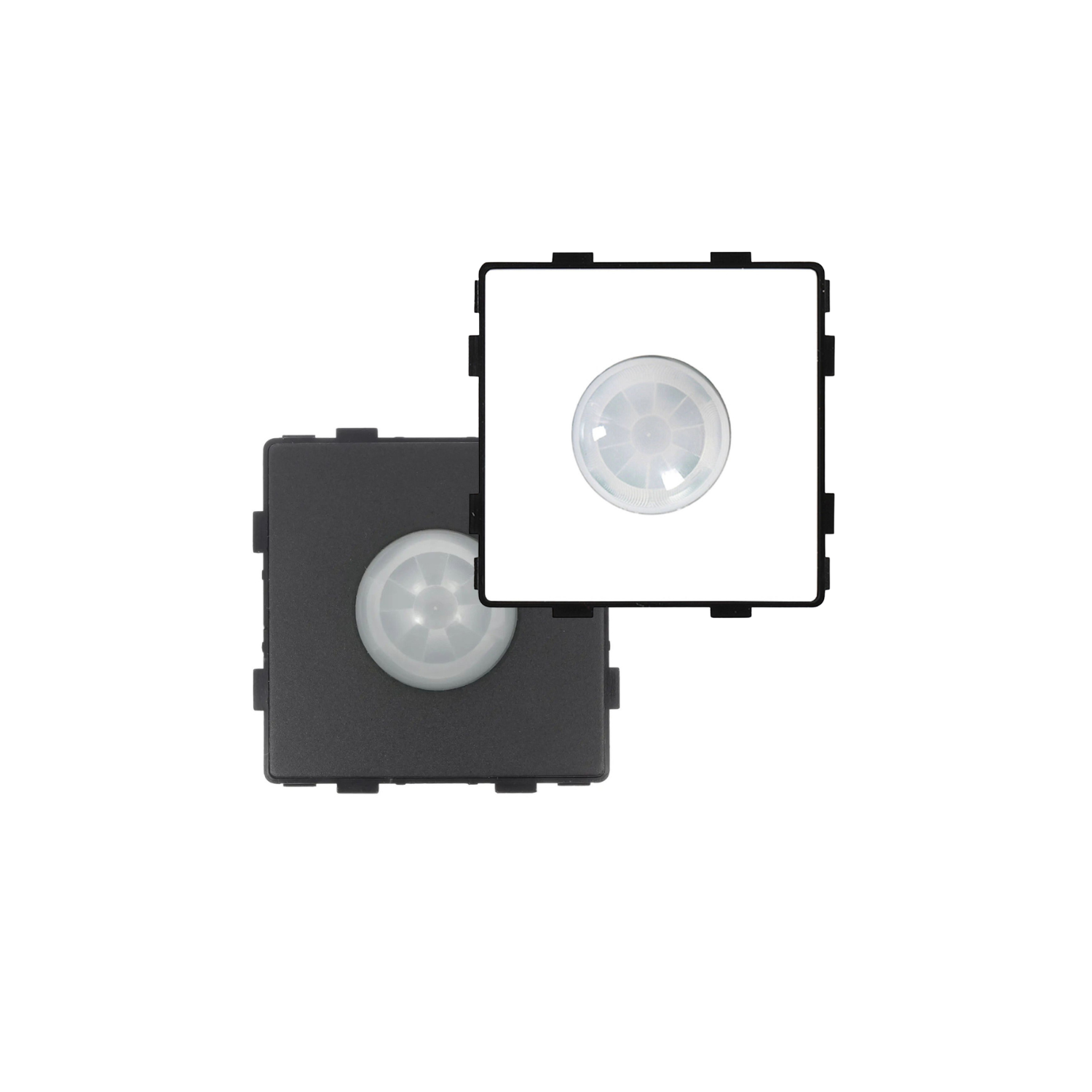

PIR Motion Sensor + Dusk Sensor - Pro Series

€6.39
Tax included
VIN AC 220-240V
IP grade IP20
Indoor / outdoor Interior
Colour White
In Stock

Essential accessories

Best price guaranteeIf you find a cheaper product, contact us and we will try to beat it.
24h deliveryOrder before 5pm* and receive your order tomorrow.
True reviewsRating: 4.8 / 5
Based on 2,324 reviews
up to 5-Year warranty
Global shipping
30-days returns
Secure payment

Documents

Datasheet

Size 50 x 50 x 30 mm
Indoor / outdoor Interior
VIN AC 220-240V
Frequency (HZ) 50 Hz
Material PC
IP grade IP20
Certifications CE, RoHS
Warranty 3 years
Motion sensor PIR
EAN/GTIN 8435841811744

Description

The Motion Detection PIR + Dusk Sensor is a mechanism designed to automate the activation of LED installations in indoor spaces in a simple and efficient manner. Its compact format allows integration into stairs, corridors, hallways, and passageways, as well as in homes, hotels, bars, restaurants, cinemas, and other indoor spaces.

_x000d_

It is made of polycarbonate and has dimensions of 50 x 50 x 30 mm. It operates with an input voltage of 220-240V and a service frequency of 50 Hz.

_x000d_

With a maximum load of up to 60W on 220V installations, the sensor detects movement in dark conditions and automatically activates the lighting, turning off after 50 seconds without detecting movement. Its detection range is 4-8 meters with a coverage angle of 90 degrees, offering a precise and reliable response in each activation.

_x000d_

Its key function: the dusk sensor

_x000d_

One of the key elements of this mechanism is its integrated dusk sensor, which keeps the device inactive when detecting natural light, activating only in dark conditions. In this way, the sensor allows automatic management of lighting mechanisms such as the LED Beacon 1W - Pro Series, avoiding unnecessary activations and optimizing consumption.

_x000d_

Compatibility and warranty

_x000d_

The sensor is designed for installation in universal mechanism boxes and must be combined with the frames of the Pro Series, thus maintaining a uniform aesthetic with the rest of the mechanisms in the range. It is not compatible with the frames of the PC and Zero series. The compatible frames are shown in the "Accessories and related" section.

_x000d_

It comes with a 3-year warranty and is CE certified.

_x000d_

Includes screws for installation. Does not include a frame.
