Halogen-free electrical hose 3x2.5mm² RZ1-K (AS) 0.6/1 kV 50m

MRZ1K3G25V
€77.67 (93,98€ IVA incluido)
More technical information+ Info
colour
  •     En Stock
Quantity
Professional? Click here!

  • Safe purchase through secured payment gateway Safe purchase through secured payment gateway
  • 24/48h shipping on the peninsula 24/48h shipping on the peninsula
  • Return period 15 days Return period 15 days
PayPal
  • Product Details

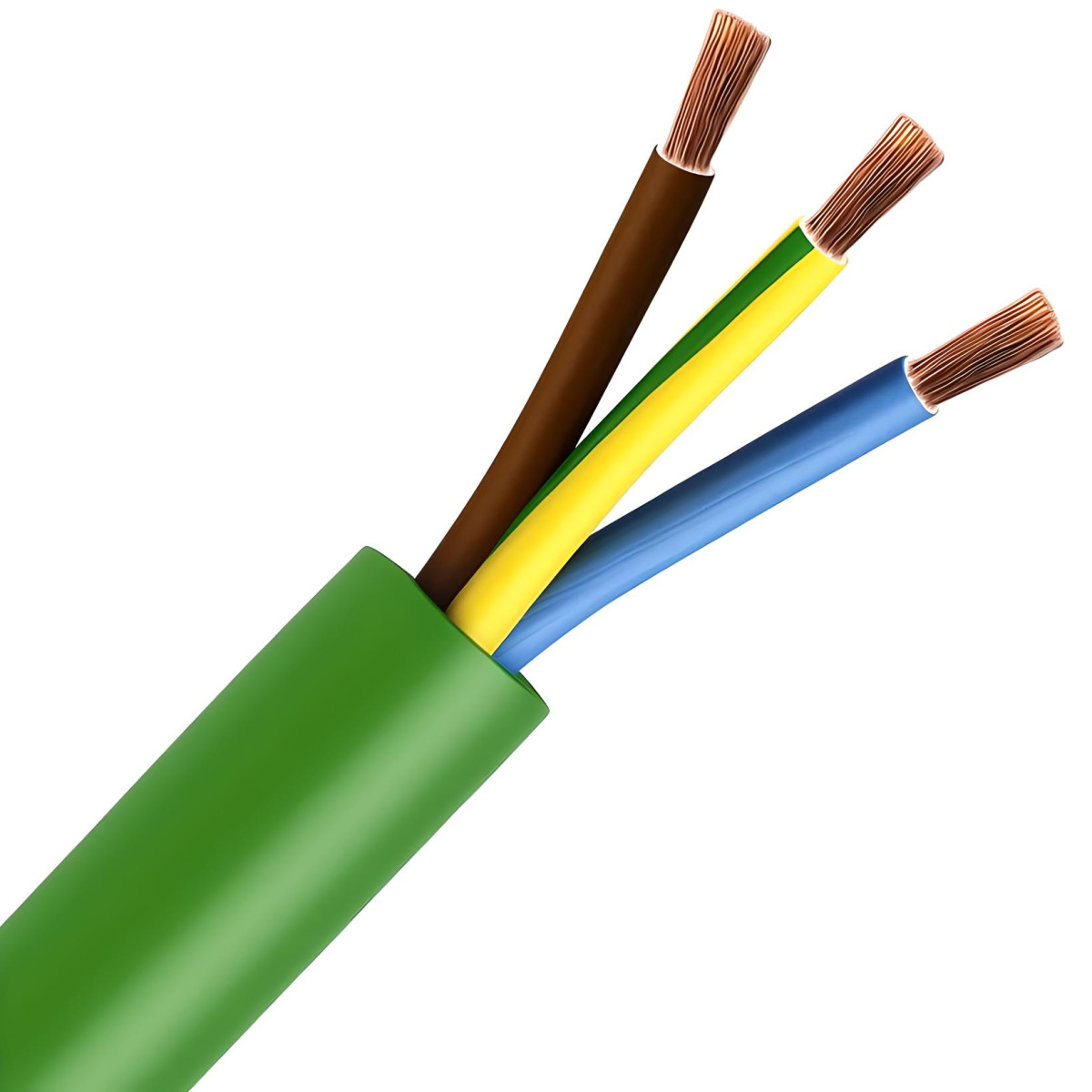

RZ1-K (AS) 0,6/1 kV CPR 3G2,5 green colour, with 3 wires of 2,5mm² section.

Complies with the classification criteria for construction products according to Regulation CPR 305/2011 and standard EN 50575, being these cables suitable for fixed installations, protected or not, where in case of fire a low emission of smoke and corrosive gases is required, such as public places, hospitals, schools, shopping centres and airports. They are suitable for indoor and outdoor installations. Their great flexibility makes them very suitable for complex and difficult installations.

This product is supplied in rolls of 50 metres, packed in shrink-wrapped plastic.

Technical characteristics

- Conductor: Flexible electrolytic copper (Class V) according to UNE-EN 60228, EN 60228 and IEC 60228.

- Insulation: Cross-linked polyethylene (XLPE) type DIX 3 according to UNE 21123, HD 603 S1 and IEC 60502-1.

- Sheath: Thermoplastic polyolefin type DMZ-E according to UNE 21123 and UNE-HD 603-1 and ST8 according to IEC 60502-1

- Rated voltage: 0.6/1 kV

- Test voltage: 3,500 V A.C.

- Maximum temperature: 90 ºC

MRZ1K3G25V

Data sheet

  • CertificationsCE, RoHS
  • Weight7.2 Kg.
  • Warranty3 years


RZ1-K (AS) 0,6/1 kV CPR 3G2,5 green colour, with 3 wires of 2,5mm² section.

Complies with the classification criteria for construction products according to Regulation CPR 305/2011 and standard EN 50575, being these cables suitable for fixed installations, protected or not, where in case of fire a low emission of smoke and corrosive gases is required, such as public places, hospitals, schools, shopping centres and airports. They are suitable for indoor and outdoor installations. Their great flexibility makes them very suitable for complex and difficult installations.

This product is supplied in rolls of 50 metres, packed in shrink-wrapped plastic.

Technical characteristics

- Conductor: Flexible electrolytic copper (Class V) according to UNE-EN 60228, EN 60228 and IEC 60228.

- Insulation: Cross-linked polyethylene (XLPE) type DIX 3 according to UNE 21123, HD 603 S1 and IEC 60502-1.

- Sheath: Thermoplastic polyolefin type DMZ-E according to UNE 21123 and UNE-HD 603-1 and ST8 according to IEC 60502-1

- Rated voltage: 0.6/1 kV

- Test voltage: 3,500 V A.C.

- Maximum temperature: 90 ºC
