Ref. LT623
Quick Connector 2 Inputs 6 Outputs 0,08-4 mm²
€1.71
Tax included
VIN
100/265V
IP grade
IP20
You may also like
Documents
Datasheet
VIN
100/265V
Output current
32A
Material
PA
IP grade
IP20
EAN/GTIN
8435841813793
Description

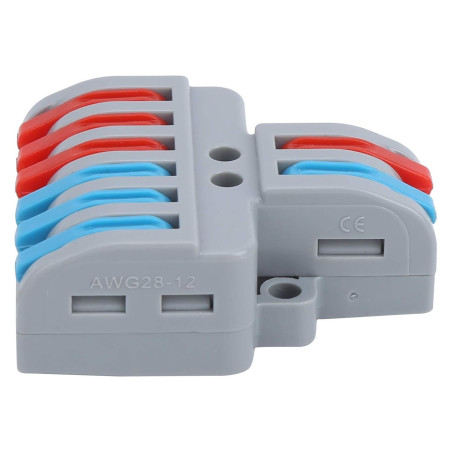

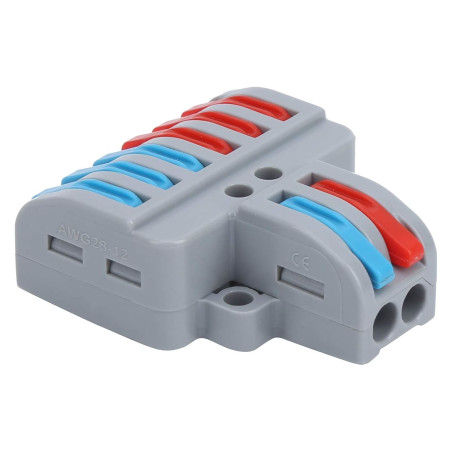

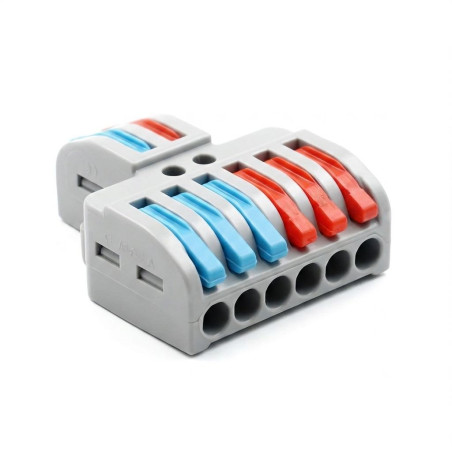

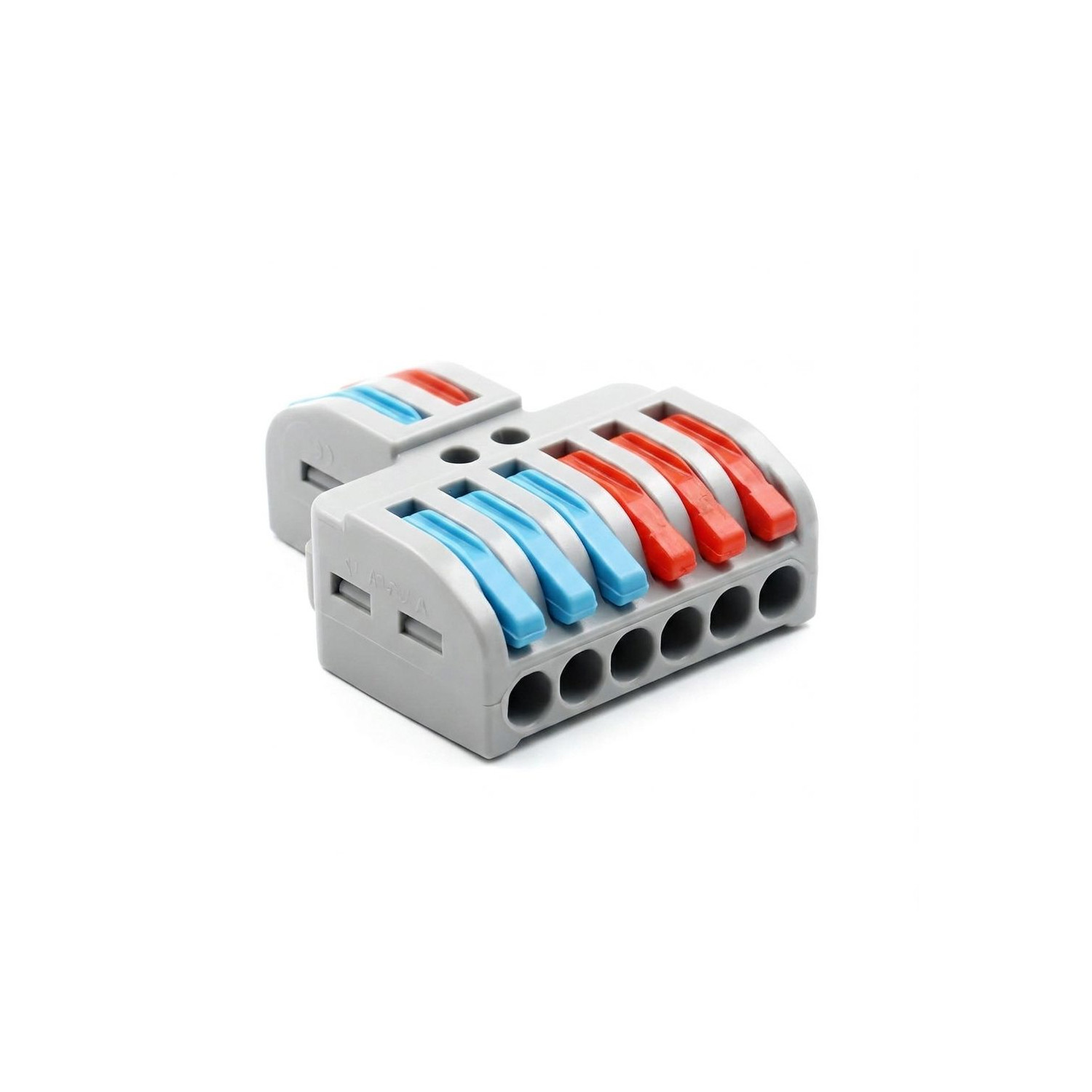

The Quick Connector with 2 inputs and 6 outputs allows you to make cable branches and connections quickly, safely and neatly. Its lever-operated connection system makes installation easy without the need for screws or insulating tape, saving time both during assembly and later maintenance work.

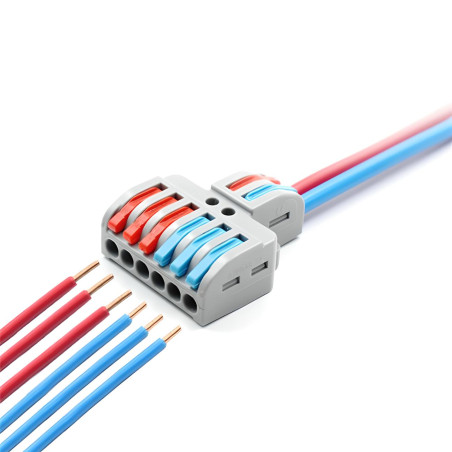

Its configuration of 2 inputs and 6 independent outputs allows two input conductors to be connected and the connection distributed across up to six outputs, making it especially useful for creating branches in electrical and lighting installations.
It is compatible with cables from 0.08 to 4 mm², offering a versatile solution for different types of connections. It is suitable for lighting installations, junction boxes, luminaires, electrical panels and control boards, especially when several branches need to be made at the same point.

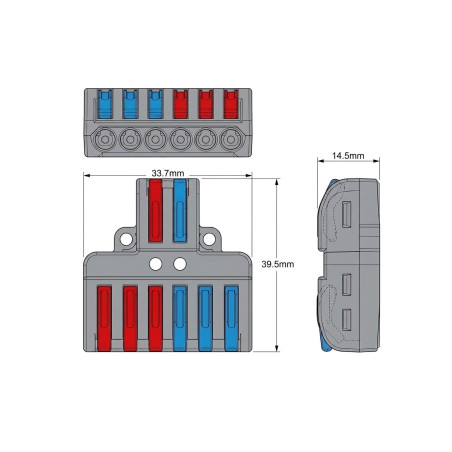

Made of high-strength plastic, it has a compact design that makes installation easy even in tight spaces. It supports a voltage of 100-265V and a maximum current of 32A.
Its IP20 protection rating makes it suitable for indoor installations protected from water. It offers protection against solid objects larger than 12 mm, but not against water or moisture.
The connector holds CE certification and comes with a 3-year warranty, providing a reliable solution for electrical connections and branches in indoor installations.
